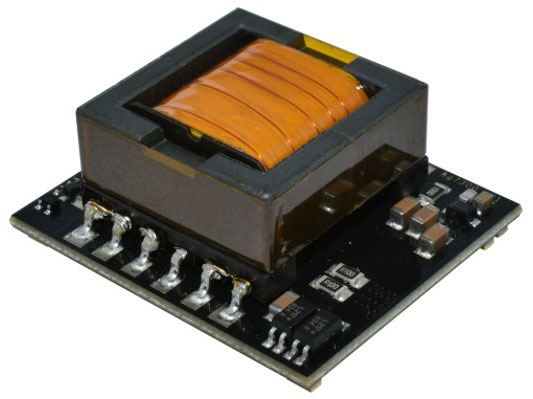

Ag7300 120 W DC/DC Boost Converter Module
The Silvertel Ag7300 single output isolated DC/DC boost converter module provides continuous power up to 120 W at +85°C
The Silvertel Ag7300 high-power DC/DC boost converter is designed to generate higher voltages while providing the isolation required for an IEEE802.3 compliant PSE application. It is suited for use in single IEEE802.3bt (PoE++) applications, multiple IEEE802.3af/at (PoE/PoE+) applications, or power distribution applications.
The Ag7300 accepts a wide DC voltage input range from 18 V to 36 V and provides a regulated adjustable output between 48 V and 57 V while achieving greater than 91% efficiency. The DC/DC converter also has built-in output overload, output short-circuit, and overtemperature protection.
All Silvertel products are designed and manufactured in the UK according to the ISO9001 standard and fully comply with RoHS and REACH Directives.
- Designed and manufactured in the UK
- >91% efficient DC/DC converter
- Wide input voltage range: 18 V to 36 V
- 48 V to 57 V output voltage
- 120 W output power
- Overload protection
- Short-circuit protection
- Thermal protection
- Industrial temperature range:
- Operating temperature range: -40°C to +85°C
- Storage temperature range: -40°C to +100°C
- Minimal external components required
- Low-profile SMT package (40 mm x 35 mm)
- Provides ease of use and implementation
- Rapid time-to-market
- Supply voltage range: -0.3 VDC to 40 VDC
- Typical input capacitance: 470 μF
- Typical output capacitance: 47 μF
- Typical nominal output voltage: 55.5 V
- Continuous current output: 2.2 A max
- 0.15% max line regulation
- 0.15% max load regulation
- Typical ripple and noise: 370 mVP-P
- Single IEEE802.3bt (PoE++)
- Multiple IEEE802.3af/at (PoE/PoE+)
- Power distribution
Ag7300 120 W DC/DC Boost Converter Module
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | AG7300 | DC DC CONVERTER 48 ~ 57V 120W | 0 - Immediate | $20.75 | View Details |
Ag7300 Evaluation Board
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
|  | EVALAG7300 | EVAL BOARD FOR AG7300 | 0 - Immediate | $71.43 | View Details |
