Arduino LCD Menu - Simple Tutorial
License: GNU Lesser General Public License Displays I2C / TWI Microcontrollers Switches Arduino ESP32
We will learn how to make a simple Menu with buttons using Arduino and the I2C LCD.
Watch the Video!
Learn more about Visuino: What is Visuino
What You Will Need
20x4 I2C Character LCD display (if you use a different LCD, then make sure that you specify the right Columns and Rows in the Visuino component)

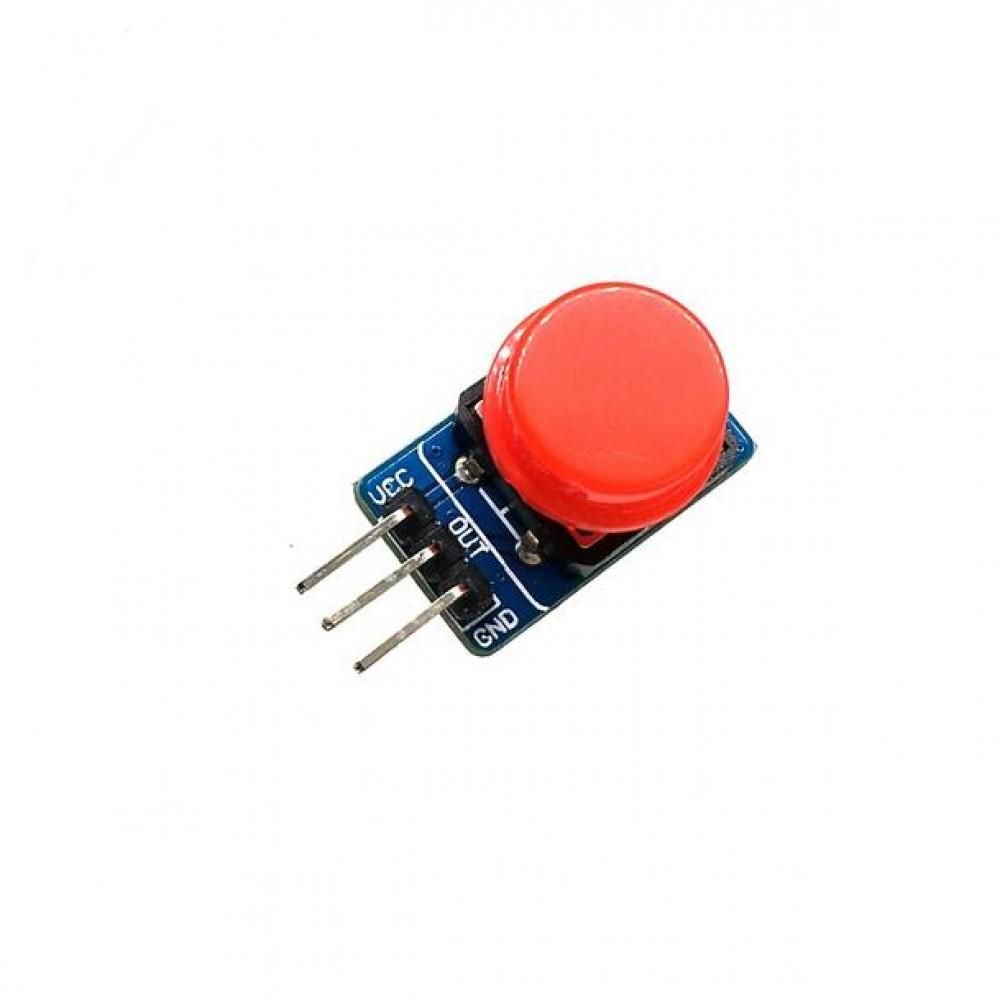

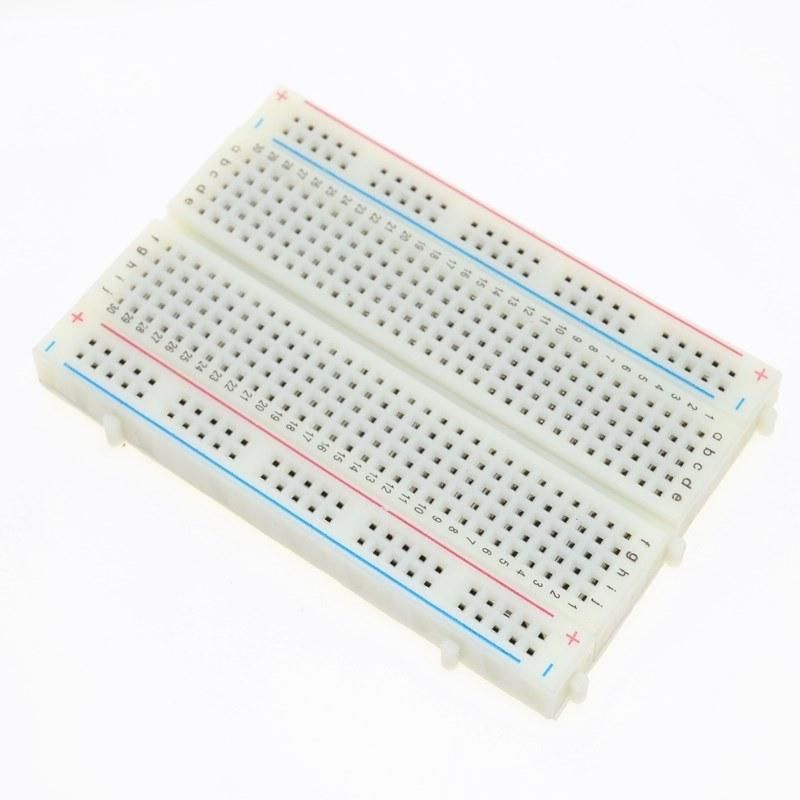

2X Buttons

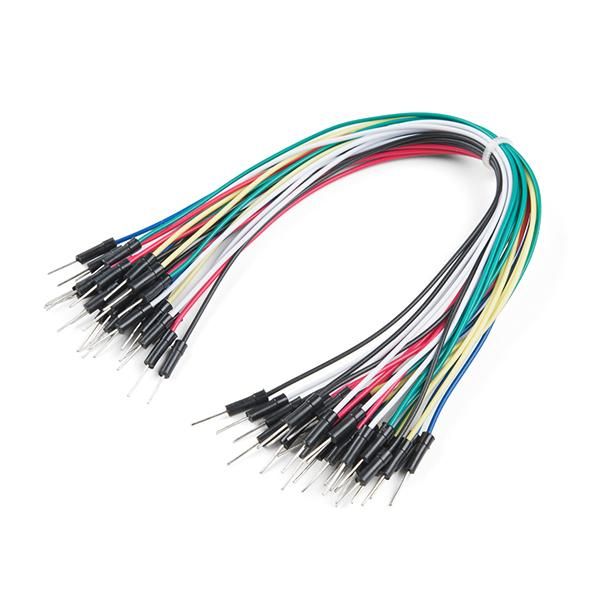

Arduino Uno or any other Arduino board
Visuino software: Download here
Circuit

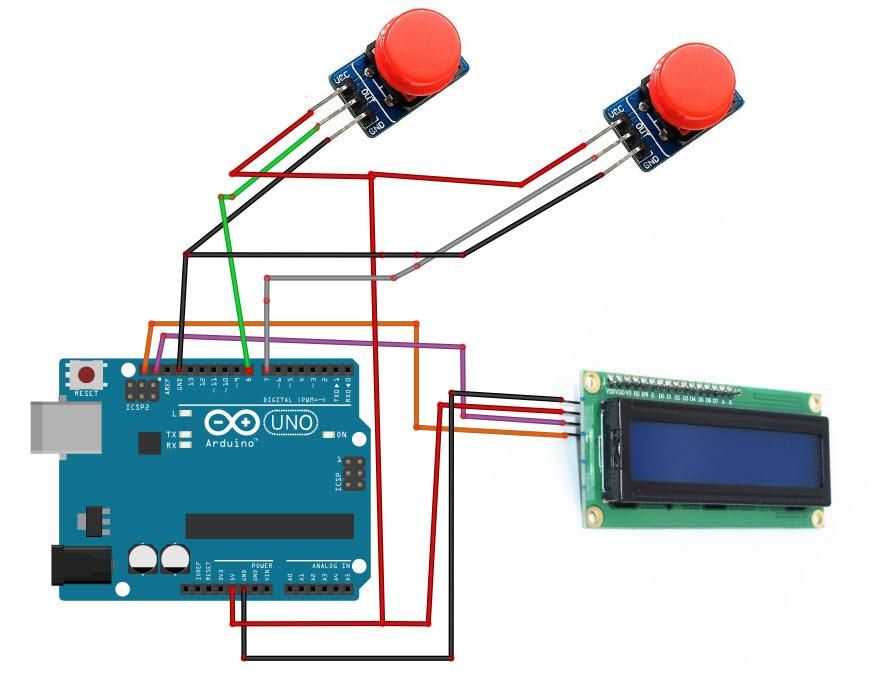

Connect LCD Display pin VCC to Arduino pin 5V
Connect LCD Display Module pin GND to Arduino pin GND
Connect LCD Display pin SCL to Arduino pin SCL
Connect LCD Display pin SDA to Arduino pin SDA
Connect Button1 pin VCC to Arduino pin 5V
Connect Button1 pin GND to Arduino pin GND
Connect Button1 pin Out to Arduino digital pin 7
Connect Button2 pin VCC to Arduino pin 5V
Connect Button2 pin GND to Arduino pin GND
Connect Button2 pin Out to Arduino digital pin 8
Start Visuino, and Select the Arduino UNO Board Type
The Visuino: https://www.visuino.eu also needs to be installed. Download the free version or register for a Free Trial.

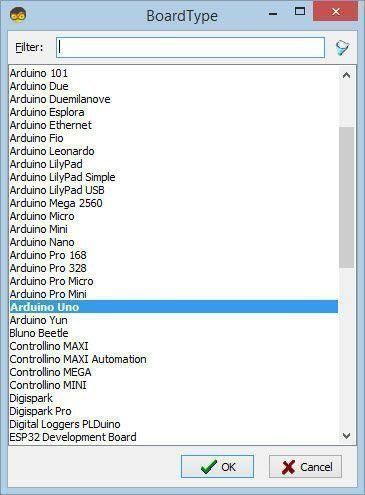

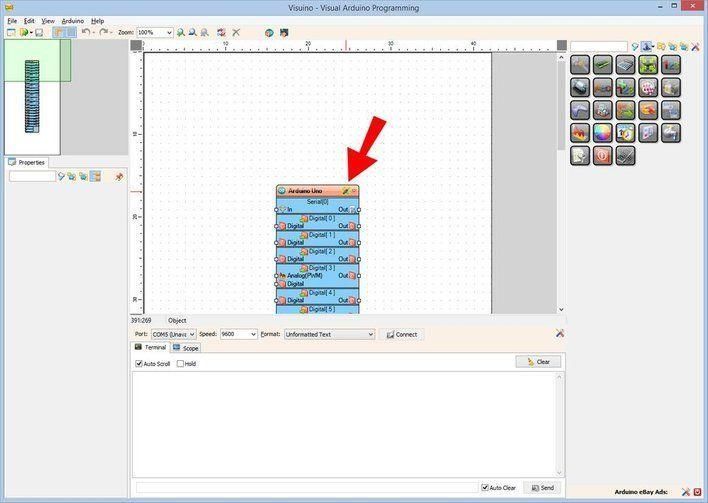

Start Visuino as shown in the first picture. Click on the "Tools" button on the Arduino component (Picture 1) in Visuino. When the dialog appears, select "Arduino UNO" as shown in Picture 2
In Visuino Add Components
Add 2X "Detect Edge" component
Add "Up/Down Counter" component
Add "Clock Multi Source" component

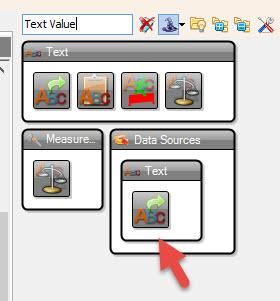

Add 5X "Text Value" component

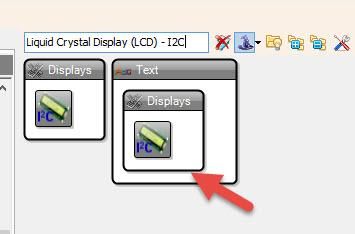

Add "Liquid Crystal Display (LCD) - I2C" component
In Visuino Set Components
Select "UpDownCounter1" and in the properties set Max > Value to 3 and Min > Value to 0
Select "ClockMultiSource1" and in the properties window set Output Pins to 6
Select "TextValue1" and in the properties window set Value to ">"
Select "TextValue2" and in the properties window set Value to "ROW1"
Select "TextValue3" and in the properties window set Value to "ROW2"
Select "TextValue4" and in the properties window set Value to "ROW3"
Select "TextValue5" and in the properties window set Value to "ROW4"
Select "LiquidCrystalDisplay1" and in the properties window set Columns to 20 and Rows to 4

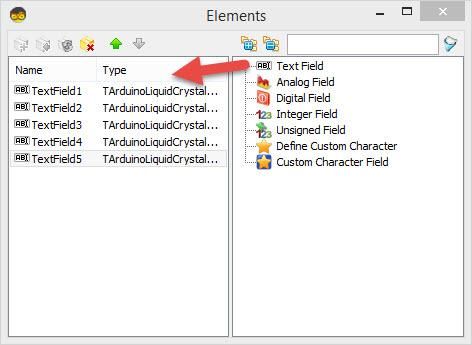

Double click on the "LiquidCrystalDisplay1" and in the Elements window:
Drag "Text Field" to the left side and in the properties window set "Column" to 1 and "Initial Value" to "ROW1"
Drag another "Text Field" to the left side and in the properties window set "Column" to 1 and "Initial Value" to "ROW2" and "Row" to 1
Drag another "Text Field" to the left side and in the properties window set "Column" to 1 and "Initial Value" to "ROW3" and "Row" to 2
Drag another "Text Field" to the left side and in the properties window set "Column" to 1 and "Initial Value" to "ROW4" and "Row" to 3
Drag another "Text Field" to the left side and in the properties window set "Column" to 0 and "Initial Value" to ">" and "Width" to 1, Select "Row" and Click on the pin Icon and select "Cardinal SinkPin"
Close the Elements window
In Visuino Connect Components

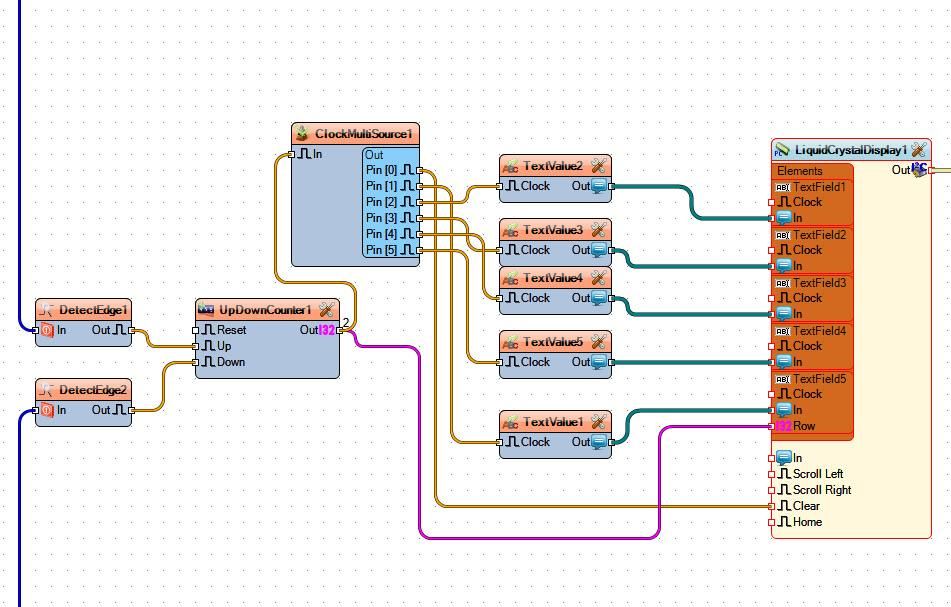

Connect Arduino Digital Pin [7] to DetectEdge1 pin [In]
Connect Arduino Digital Pin [8] to DetectEdge2 pin [In]
Connect DetectEdge1 pin [Out] to UpDownCounter1 pin [Up]
Connect DetectEdge2 pin [Out] to UpDownCounter1 pin [Down]
Connect UpDownCounter1 pin [Out] to LiquidCrystalDisplay1 > Text Field5 pin [Row]
Connect UpDownCounter1 pin [Out] to ClockMultiSource1 pin [In]
Connect ClockMultiSource1 pin [0] to LiquidCrystalDisplay1 pin [Clear]
Connect ClockMultiSource1 pin [1] to TextValue1 pin [Clock]
Connect ClockMultiSource1 pin [2] to TextValue2 pin [Clock]
Connect ClockMultiSource1 pin [3] to TextValue3 pin [Clock]
Connect ClockMultiSource1 pin [4] to TextValue4 pin [Clock]
Connect ClockMultiSource1 pin [5] to TextValue5 pin [Clock]

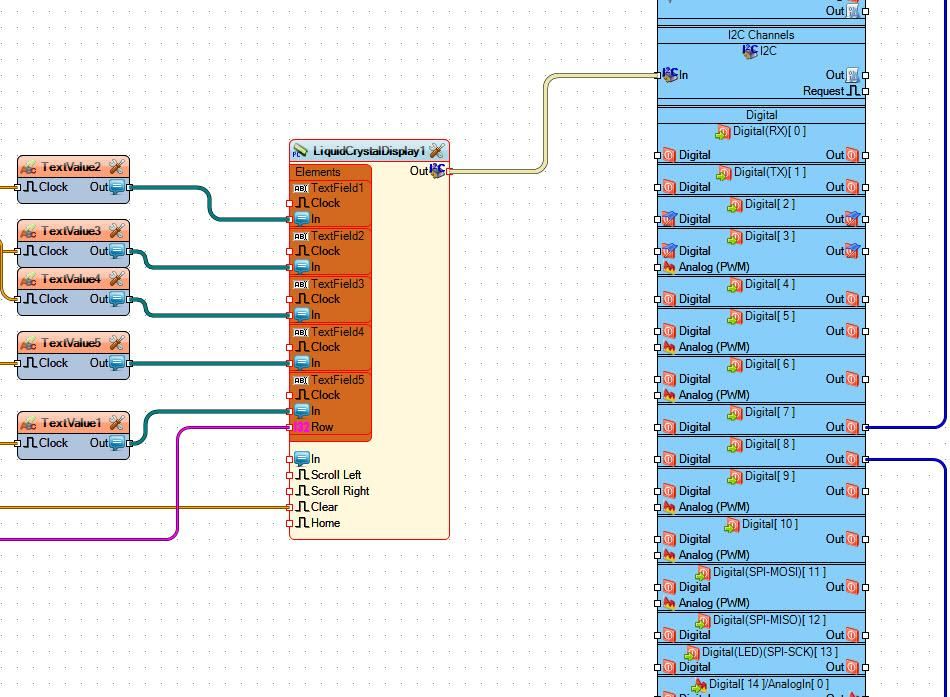

Connect TextValue2 pin [Out] to LiquidCrystalDisplay1 > Text Field1 pin [In]
Connect TextValue3 pin [Out] to LiquidCrystalDisplay1 > Text Field2 pin [In]
Connect TextValue4 pin [Out] to LiquidCrystalDisplay1 > Text Field3 pin [In]
Connect TextValue5 pin [Out] to LiquidCrystalDisplay1 > Text Field4 pin [In]
Connect "LiquidCrystalDisplay1" pin I2C [Out] to Arduino pin I2C [In]
Generate, Compile, and Upload the Code

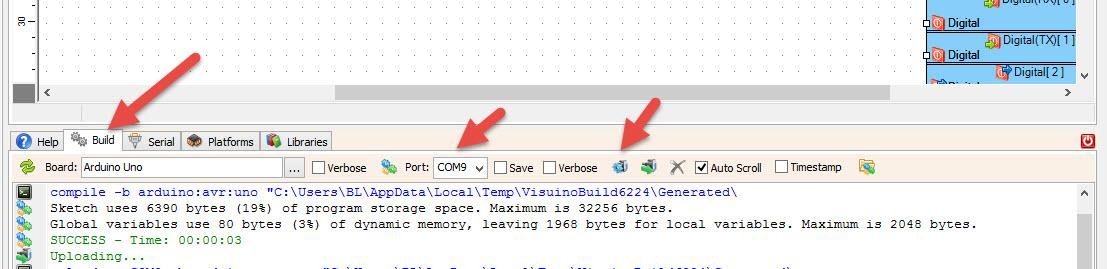

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.
Play
If you power the Arduino module and press the buttons, you will be able to change the menu selection on the LCD.
Congratulations! You have completed your project with Visuino. Also attached is the Visuino project that I created for this; you can download it and open it in Visuino: https://www.visuino.eu
